NE-202 REFRIGERATION CABINET (2 BODIES-1 DOOR)

• Panel thickness: 60mm.
• High-density injected polyurethane foam.
• No CFC’s.
• Density: 40 kg. /M3
• Fire resistance: M-2 (ASTM D 1692).
• 1 Door 1100 x 750 mm.
• Self-supporting general structure allowing its assembling without perforation of the panel.
• Prismatic rail for sliding of the body trays.
• 2 concave trays for fluids collection.
• Body trays equipped with 8 nylon wheels which slide onto prismatic rails.
• 2 introduction coffin kits.
• Internal and external stainless steel finished.
• Capacity: 2 bodies.
• Trays / coffins.
• Refrigeration temperature: 0ºC to 10ºC

NE-203 B FREEZING CABINET (3 BODIES-1 DOOR)

• Panel thickness: 100mm.
• Polyurethane high pressure injected foam.
• No CFC’s.
• Density: 40 kg./M3
• Fire resistance: M-2 (ASTM D 1692).
• 1 Door 1600 x 750 mm.
• Non-perforated inner panel.
• Internal structure self-supported.
• Prismatic guides for sliding the trays.
• 3 concave trays for collecting fluids.
• 8 wheels per trays.
• 2 introduction coffin kits.
• Internal and external stainless steel finished.
• Capacity: 3 bodies.
• Trays/coffins.
• Freezing temperature:  (0º to - 20º) Programmable
• Important: coffins only in 2 first levels.

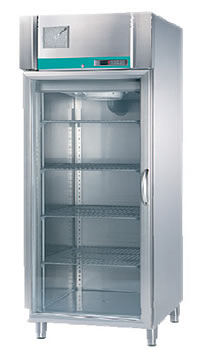

RL-600 LABORATORY REFRIGERATOR 600L

• Digital temperature controller with display, temperature range from +2ºC to +14ºC.
• High volume FAN in the chamber for forced air-flow cooling circulation.
• Pt 100 probe with 0.1ºC accuracy on the display.
• Audible and visible independent alarms for maximum and minimum temperature, also alarms for probe and power failure; all with battery back-up.
• Homogeneity in the chamber of +/- 1.5ºC.
• Audible and visible independent alarms for maximum and minimum temperature, also alarms for probe and power failure; all with battery back-up.
• Code protect control panel (supported over 18 hours).
• Forced-air flow system, distributed uniformly upward, with high homogeneity of the temperature inside the chamber.
• Digital temperature controller with display, temperature range from +2ºC to +14ºC.
• High volume FAN in the chamber for forced air-flow cooling circulation.
• Pt 100 probe with 0.1ºC accuracy on the display.
• Audible and visible independent alarms for maximum and minimum temperature, also alarms for probe and power failure; all with battery back-up.
• Solid door with big sized handle (in data chart).
• Security lock door with key.
• On/Off power switch retro-illuminated.
• Evaporator with automatic defrost, probe controlled in stainless steel models.
• Cooling gas R134a, CFC and HCFC free, biodegradable.
• Hermetic compressor, built over dampers low noise <48dB.
• Internal and External chamber according the model (see the data chart).
• Feet for adjusting equipment height.
• Internal shelves made in plastic coated steel wire, adjustable height.
• Magnetic perimeter gasket on the door, to ensure a perfect airtight closing.
• Isolation of 60 mm of high density injected polyurethane, CFC and HCFC free.
• Tropical treatment to allow work until +38ºC working area temperature with 85-90% R.H.
• Consumption: 351W
• Internal dimensions: 580x690x1360mm.
• External dimensions: 700x820x2080mm.
• Power supply: 220V / 50Hz.

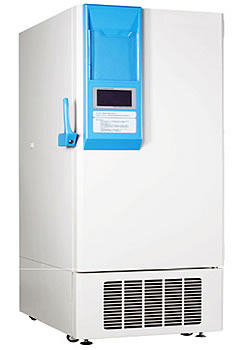

UCL-525-86 ULTRA LOW FREEZER 525L -86ºC

• Temperature control range from -86ºC to -40ºC.
• Digital temperature control unit with digital display, placed at visible level on the front door, for easy reading, to control the system parameters.
• Control panel with tactile keyboard.
• Pt 100 temperature probe, accuracy of 0.1ºC on the display.
• Audible and visible independent alarms with battery backup: maximum and minimum temperature, also alarms for power failure.
• Alarms indications with battery backup: door open, battery empty, filter saturation; also for system failures, current voltage level and room temperature.
• Numerical code protection on the control system.
• Printer for temperature recorded every 20 min and 7 days memory.
• Display for ambient room temperature.
• Display of the current voltage level.
• Alarm record of the 10 last incidents, with indication of date, time, cause of alarm and the time of failure.
• Main power switch key protected.
• Solid door with easy opening device and independent lock with keys.
• Isolation of 155 mm of high density injected polyurethane CFC and HCFC free, for CVF 380/86 and CVF 220/86 models, for CVF 525/86 and CVF 800/86 models: 110 mm Vacuum Formed High Density Polyurethane (VIP), CFC and HCFC free.
• Cooling gases, CFC and HCFC free, biodegradable.
• Surrounding evaporator system.
• Hermetic compressors built on cascade serial construction, low noise, mounted over dampers in order to avoid the sound level <48dB.
• Air filter placed on the front, easy to take out and clean.
• Double heated perimeter gasket on the door, to ensure ice free and a perfect airtight closing.
• Heated pressure compensation valve, allow easy opening of the door by frequent door openings.
• Internal chamber of stainless steel.
• Free height regulated stainless steel shelves.
• External chamber made it of carbon steel, epoxy coated.
• Base with 4 wheels, for easy movement.
• Tropical treatment, to allow work until 38ºC working area temperature, with 85-90% R.H.
• Consumption: 1100W
• Internal dimensions: 585x696x1266mm.
• External dimensions: 930x1041x1947mm.
• Capacity: 525 liters
• Power: 220v/50Hz

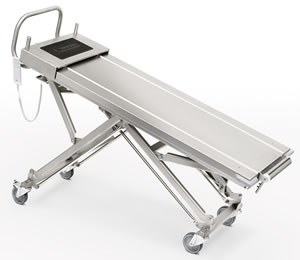

CA-DESMODRONIC

The new DESMODRONIC model is specially conceived to cover absolutely all the needs. Its special configuration allows its adaptation to any need.

• Completely built in stainless steel AISI-304.
• Electro mechanic elevation system, with compact battery incorporated.
• Charger (telephone type) incorporated.
• Lifting capacity: 1900 mm
• Height at folded position: 385 mm
• Load capacity: 350 kg.
• 4 rotary wheels, 2 of them with brake. Diameter: 150 mm.
• Great manoeuvrability.
• Fully customizable top.

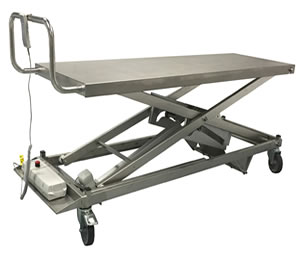

CA-410 B MULTI PURPOSE LIFTING TROLLEY

• Fully stainless steel construction.
• Lifting capacity: 1.5 m.
• Electro mechanic lifting system.
• Power 24 v.
• Small battery incorporated.
• “Telephone type” battery charger.
• Tilt movement, for showing.
• It allows the coffin introduction into the chamber (2 tiers).
• Clamping system to hold the coffin while inclined.
• Great autonomy.
• 4 Rotary wheels. 2 of them with brake.
• Specially designed for trays-coffins manipulation.
